Product Usage

PVC insulated flame retardant and non-flame-retardant cables with rated voltages up to and including 450/750V, suitable for DC and AC 50HZ
rated voltages of 450/750V and below, for power units, household appliances, instrumentation, telecommunications equipment and lighting lines
Use a cable.

Product performance standards

GB/T5023-2008 JB/T8734-2016 Flame retardant and fire resistant type used together with GB/T19666-2005

Use characteristics

1. Rated voltage

The rated voltage of the cable is expressed as follows:

UO/U=450/750

Where: UO: the effective value of the voltage between any primary insulated conductor and "ground" (metal shield, metal sleeve or surrounding
medium).

U: Voltage rms value between any two conductors of a multi-core cable (wire) or single-core cable (wire) system.

2. Conductor rated working temperature

The maximum rated operating temperature of the cable conductor is 70 ° C, and the heat-resistant 90 ° C PVC insulated cable allows long-term
operating temperature of 90 ° C, heat resistance 105 ° C

PVC insulated cables allow a long-term operating temperature of 105 °C.

In the case of a short circuit (maximum duration not exceeding 5 s), the maximum temperature of the cable conductor does not exceed 150 °C.

3. Cable laying conditions

The cable should be laid at a temperature not lower than 0 °C. Allowable bending radius: the outer diameter of the cable is less than 25mm (D ≤ 25mm) should not be less than 4D; the outer diameter of the cable is 25mm and above (D ≥ 25mm) should be no less than 6D

Product representation

1.Code

A. According to the purpose

Fixed laying cable (wire).......................................... ...............................................B

Soft cable for connection (soft wire).......................................... .................................................. R

Elevator cable................................................ .................................................. .........T

Decorative lighting cords................................................ .................................................. ...S

B. According to material characteristics

Copper conductor................................................ .................................................. ........omitted

Copper copper conductors.............................................. .................................................. ...TP

Insulated Polyvinyl Chloride.............................................. .................................................. .....V

Jacket PVC............................................. .................................................. ...V

Sheath oil-resistant polyvinyl chloride........................................... .................................................. ...VY

C according to structural characteristics

Round................................................ .................................................. ..........omitted

Flat (flat)............................................ .................................................. .....B

Twisted shape............................................... .................................................. ..........S

Shield type................................................ .................................................. .........P

Soft structure................................................ .................................................. .........R

D. According to heat resistance characteristics

70°C................................................ .................................................. ........omitted

90 ° C................................................ .................................................. .........90

2. Product representation method

The product is indicated by model, specification (rated voltage, number of cores, nominal cross section) and standard number.

3. Product model composition

The various cable types included in GB/T5023 are indicated by two numbers and placed after the 60227 IEC. The first digit indicates the basic
classification of the cable.

The second digit indicates a specific pattern in the basic classification.

0——Non-sheathed cable for fixed wiring

01—General purpose single core hard conductor unsheathed cable (60227 IEC01)

02—General purpose single core soft conductor unsheathed cable (60227IEC02)

05—Single-core solid conductor unsheathed cable with internal conductor temperature of 70 °C (60227 IEC 05)

06—Single-core solid conductor unsheathed cable with internal conductor temperature of 90°C (60227IEC 06)

07—Single-core solid conductor unsheathed cable with internal conductor temperature of 90°C (60227IEC 007)

08—Single-core flexible conductor unsheathed cable with internal conductor temperature of 90°C (60227IEC 008)

1——sheathed cable for fixed wiring

10—Lightweight PVC sheathed cable (60227IEC 10)

4——Lightweight non-sheathed cable

41—Blat copper wire (60227IEC 41)

42—flat, unsheathed cord (60227IEC 42)

43—Soft wire for indoor decorative lighting circuit (60227IEC 43)

5—General purpose sheathed flexible cable

52—Lightweight PVC sheathed cord (60227IEC 52)

53—Common PVC sheathed cord (60227IEC 53)

56—Thermal light-weight PVC sheathed cord with conductor temperature of 90°C (60227IEC 56)

57—The heat-resistant lightweight PVC sheathed cord with a conductor temperature of 90°C (60227IEC 57)

product structure

1. Conductor

The conductor shall comply with the provisions of GB/T3956. The surface of the conductor shall be smooth and free of oil, without burrs, sharp edges and single lines protruding or broken.

2. Insulation

The insulation should be tightly packed onto the conductor and should be easily peeled off without damaging the insulator, conductor or plating.

3. Metal shielding

The shielded cable shall have a copper tape shield or a copper wire braided shield outside the cable core.

4. Outer sheath

PVC sheathed cable and cord, color PVC sheathing material anti-day package on the core.

5. Finished cable logo

The outer sheath surface of the finished cable is printed with a continuous mark of the name, model, rated voltage, number of cores,
nominal cross section and number of meters.

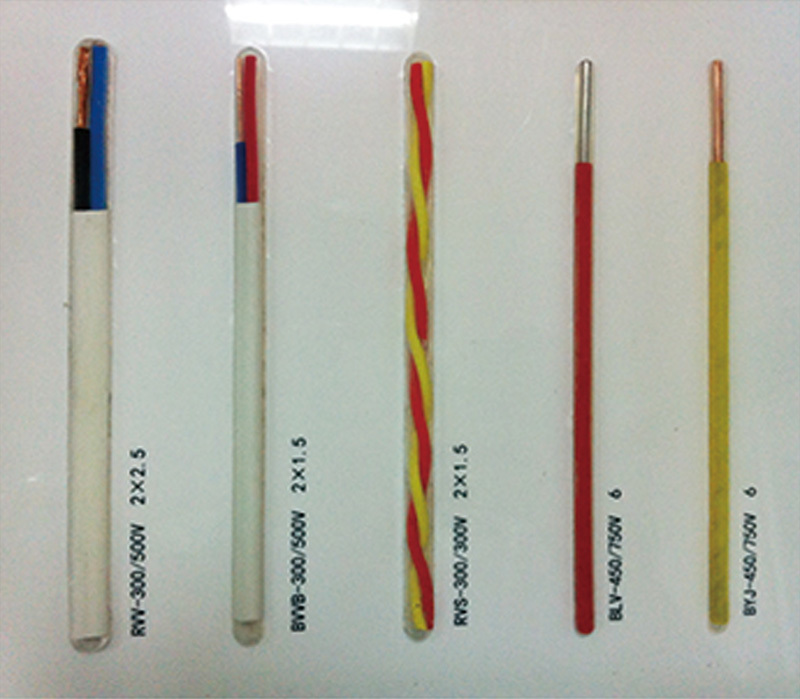

Product model, specification

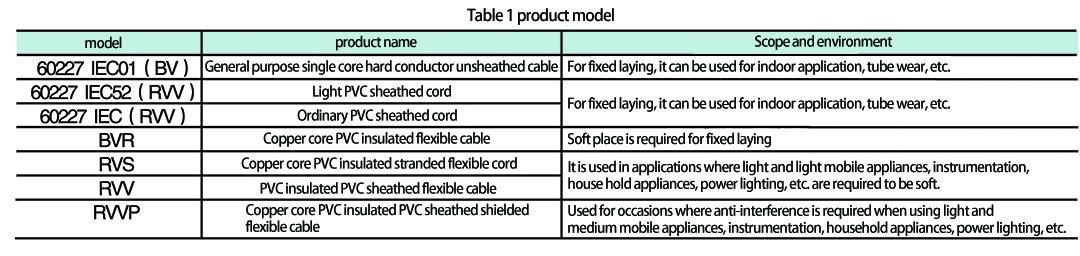

Product model

2. Product specifications

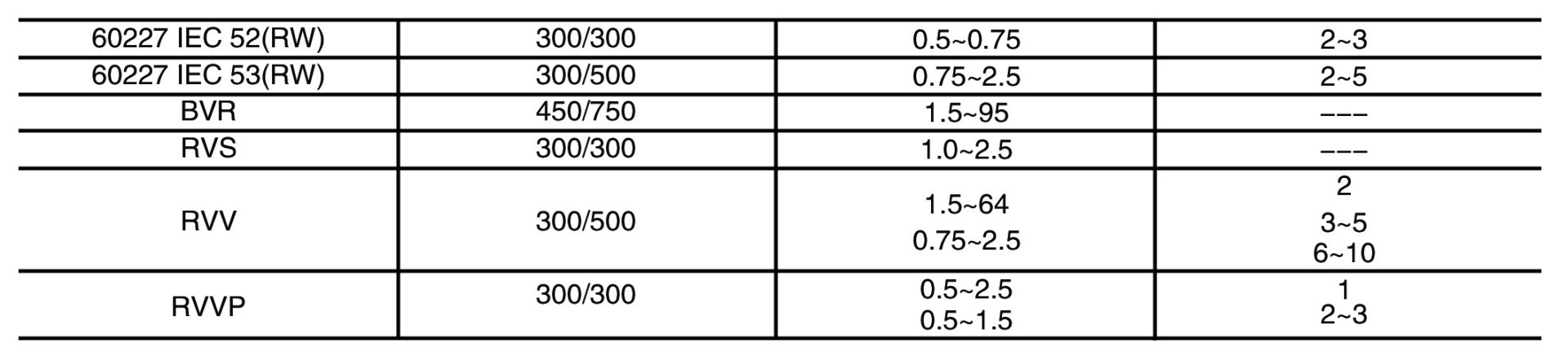

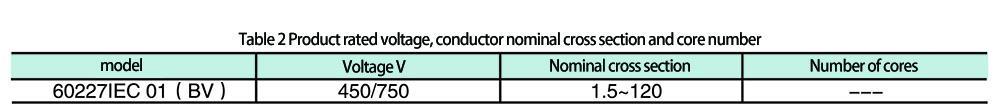

Product rated voltage, conductor nominal cross section and core number are shown in Table 2.
