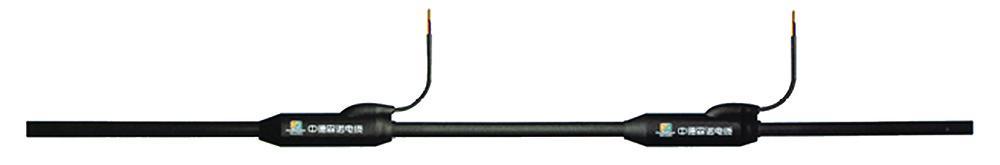

Branch Cable Product Overview
In recent years, with the development of China's national economy and capital construction, there are more and more middle and high-rise buildings, high-rise buildings and super high-rise buildings. Due to the complexity of power distribution and the increase of capacity in modern buildings, the
requirements for the reliability and economy of power distribution trunk lines are getting higher and higher. In order to meet this market demand, the
company has referenced relevant information at home and abroad. Under the guidance of relevant experts, the company has developed a branch
cable (prefabricated branch cable). The products have been tested by the national wire and cable authority--the State Wire and Cable Quality
Supervision and Inspection Center and the National Fireproof Building Materials Quality Supervision
and Inspection Center. The performance is up to Q/GB-05-2009 enterprise standard requirements, the main performance exceeds the JCS376 "
with branch cable" Japanese standard requirements, this product
has passed the provincial technical appraisal, and obtained a number of national patents mainly for medium and high-rise buildings and Supply and
distribution equipment with rated voltage of 1000V and below in industrial and mining, enterprises and institutions. The utility model has the
advantages
of safe and reliable power supply, good insulation performance, convenient construction and installation, low power distribution cost, wide application
range, variety specifications and low installation environment requirements. In advanced countries abroad, a large number of branch cables have
been used instead of busbars to transmit electricity. It is more resistant to earthquakes, water and fires than busbars, avoiding the cumbersome
phenomenon of busbar installation and maintenance.
Product superiority
(1) Good electrical performance, safe and reliable power supply. The connecting piece of the branch cable adopts “O” type silver alloy tube. After
mechanical molding, it is convenient for the contact resistance of the wire and cable and the branch cable to be small, ensuring that the branch
connector is not hot. The expansion and contraction are affected, and the contact resistance is smaller as the expansion of the connecting member
and the bridging force between the branch line and the trunk cable increase. Since there is no intermediate joint on the cable trunk line, the DC
resistance is reduced, and the electrical performance, trunk continuity, joint reliability and stability of the branch cable are obviously better than those of
the ordinary cable and the busway, and there is no fault in the trunk system. Existence greatly improves the reliability of power supply.
(2) The construction period is short and the installation is convenient. The branching work that needs to be completed at the construction site has been
completed in advance in the factory. Therefore, the labor intensity on the construction site is reduced, the working time is saved, and the quality
of the branch connection is ensured. The installation method is simple and convenient, and the installation technical level of the installer is not high,
and the installation period is short, only about 10% of the installation time of the busway.
(3) It has good shock resistance and waterproofness. The molding part of the branching body adopts mechanical injection molding process, and the
adhesion of the specially formulated PVC polymer is tightly bonded to the cable sheath to ensure good connection. The tightness and waterproofness, because the branch cable is a whole intermediate jointless, its tensile strength and windability are far better than the busway. For high-rise buildings,
the mechanical stress caused by earthquake has little effect.
(4) The installation environment is low, the utilization rate is high, and the occupied area is small, which is conducive to the reasonable use of the
construction area. There is no special requirement for the reserved hole size of the civil construction, and the installation and construction
environment requirements are low.
(5) It can significantly reduce the distribution cost compared with the busway, which can reduce the cost of electrical engineering by about 30%, and
the technical index is higher, factory production, eliminating the drawbacks of manual production, fundamentally solving the ordinary cable, The
problem that the busway itself cannot solve ensures the safety, reliability and economy of the power supply line.
(6) After the maintenance-free branch cable is installed according to the specifications, the branch cable with a one-time opening rate of 100% normal operation does not require any maintenance.
Branch cable product selection
(1) YJV-cross-linked polyethylene insulated PVC sheathed branch cable can be selected for the working environment with an average temperature
greater than 35 °C or a larger load.
(2) VV-polyvinyl chloride insulated PVC sheathed branch cable can be used in general workplace.
(3) ZR-flame-resistant branched cable with flame retardant is required in the design of distribution circuit.
(4) The fire-fighting power distribution emergency lighting and other lines can be selected with NH fire-resistant branch cable.
(5) DDZ (low-smoke and halogen-free) or WDZ, WDZN (low-smoke and halogen-free) type with branch cable (ie clean type with branch cable) should be used for important buildings and crowded places.
(6) The selected trunk cable and branch cable should meet the requirements of voltage drop, and the current carrying capacity should be reserved for about 30%.

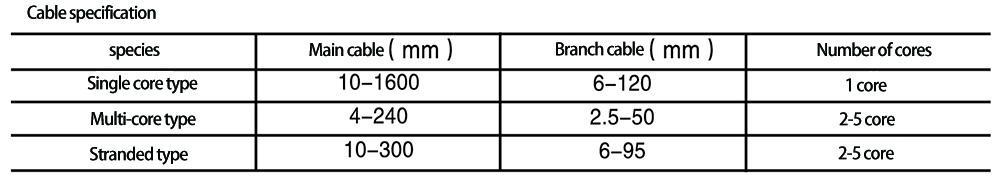

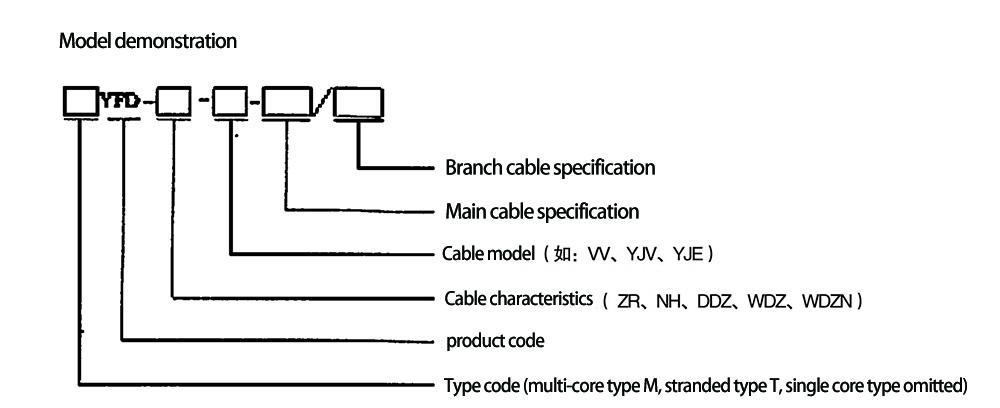

Cable type available
YJV: XLPE insulated PVC sheathed power cable.
ZR-YJV: XLPE insulated PVC sheathed flame retardant power cable.
NH-YJV: XLPE insulated PVC sheath is resistant to power cables.
DDZ-YJV: XLPE insulated low-smoke low-flame-retardant power cable (clean power cable)
WDZ-YJE: XLPE insulated low-smoke halogen-free flame-retardant power cable (clean type fire-resistant power cable)
WDZN-YJE: XLPE insulated polyolefin sheathed fire-resistant power cable (clean type fire-resistant power cable)
VV: Polyethylene insulated PVC sheathed power cable.
ZR-VV: Polyethylene insulated PVC sheathed flame retardant power cable.
NH-VV: Polyethylene insulated PVC sheathed fire resistant power cable.
Note: The cable is rated with a rated voltage (U./U) of 0.6/KV copper core low voltage power cable.
